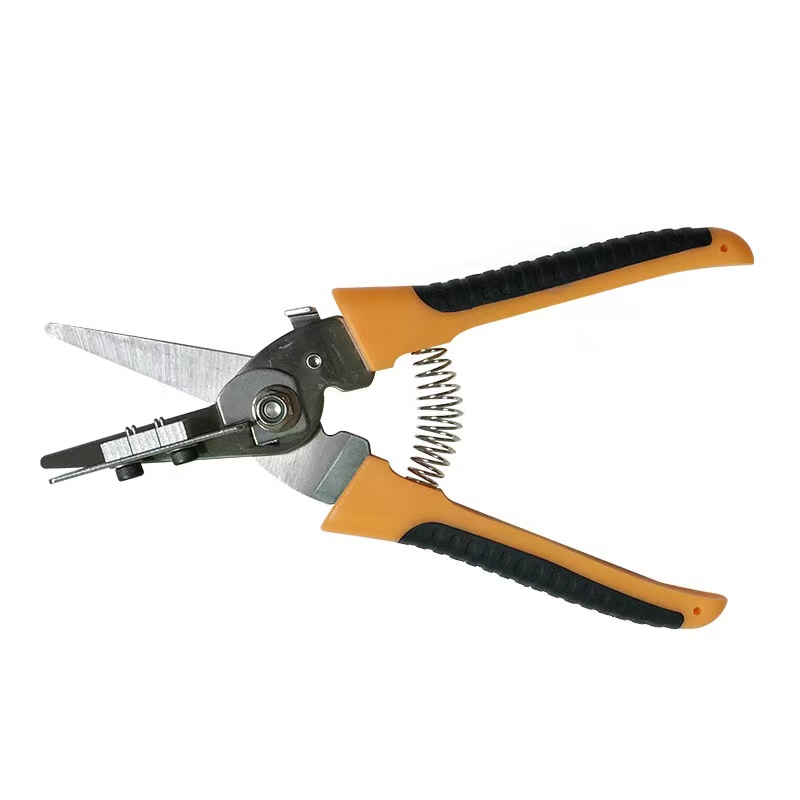

TL02 SMD tape cutter

An SMD tape cutter is a tool used in Surface Mount Device (SMD) assembly to cleanly cut carrier tape—the tape that holds SMD components on reels. It’s essential for preparing tape for splicing, reel changes, or manual component loading.

What is an SMD Tape Cutter?

An SMD tape cutter is a precision cutting tool designed to cut component carrier tape (paper or embossed plastic) without damaging the tape pockets or sprocket holes. It ensures clean edges and proper alignment, especially when the tape is being spliced or loaded into feeders.

Common Uses

• Cutting SMD tape during splicing operations

• Preparing short strips for manual pick-and-place

• Cutting damaged tape sections before feeding

• Trimming tape ends to match pitch alignment

Types of SMD Tape Cutters

1. Manual Handheld Cutters

   • Look like scissors but designed specifically for SMD tape

   • Clean, flat cuts without deforming the tape

   • Some have built-in guides to align cuts to pitch (e.g., 4mm for 8mm tape)

2. Bench-Top SMD Tape Cutters

   • Fixed-position tools

   • Better for consistent cuts, especially in high-mix production environments

3. Automatic Tape Cutters

   • Motorized or air-powered

   • Ideal for high-volume lines or automated setups

Key Features

Benefits

• Prevents damage to pockets and components

• Maintains tape integrity for splicing or feeding

• Ensures consistent alignment in feeders

• Saves time compared to standard scissors or blades

Tips for Choosing

• Match the cutter to the tape material (paper vs. embossed)

• Check compatibility with tape widths you use (8mm, 12mm, etc.)

• Consider one with pitch guides for precision

• For high-volume use, go for a bench-top or semi-automatic model
