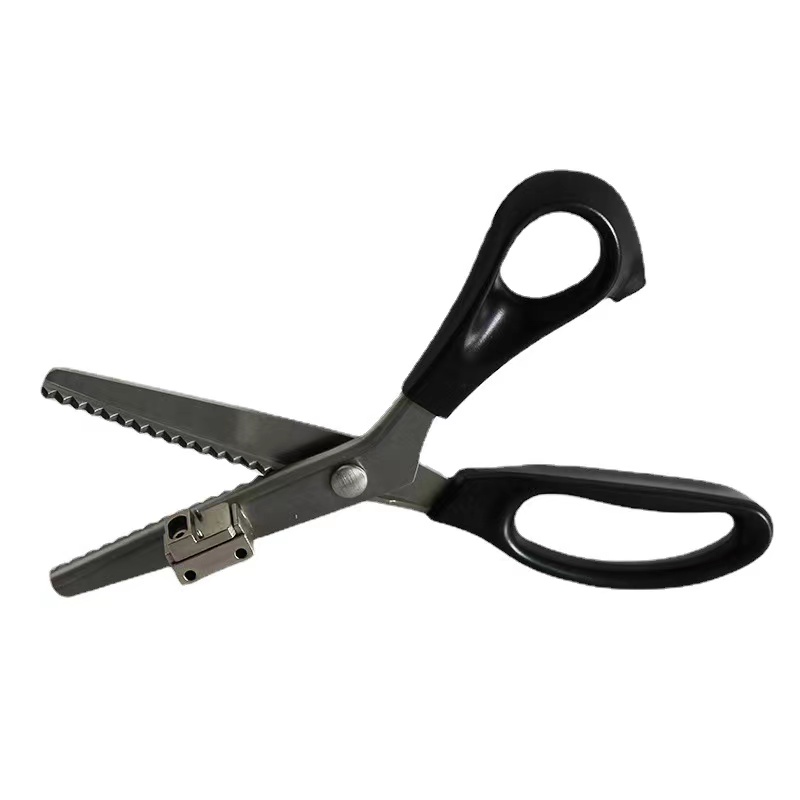

TL01 SMT Splice Scissors

SMT Splice Scissors are a specialized tool used in Surface Mount Technology (SMT) assembly for making precise cuts on component carrier tapes during the splicing process.

What Are SMT Splice Scissors?

SMT splice scissors are precision cutting tools designed to cut SMT embossed plastic or paper carrier tapes cleanly and accurately. They're used during tape splicing, which is the process of joining two reels of component tape to avoid stopping the pick-and-place machine.

Purpose and Function

In the SMT production line:

• When one reel of components runs out, a new reel can be spliced to continue production without stopping.

• Before applying splice tape, the end of the used tape and the beginning of the new tape must be cut precisely and aligned.

• SMT splice scissors ensure a clean, straight, and accurate cut, which is critical for proper hole alignment and pitch consistency.

Key Features

• Sharp, high-precision blades: Designed to cut thin plastic or paper tape cleanly without damaging the pockets or sprocket holes.

• Pitch-aligned cutting: Some splice scissors are designed to match standard pitch sizes (e.g., 4mm).

• Ergonomic design: For easy handling during repetitive tasks.

• Durable construction: Often made of stainless steel or hardened tool steel.

Variants

1. Manual Splice Scissors

   • Hand-held tool

   • Used for quick and easy cuts

   • Suitable for both paper and plastic tapes

2. Splice Scissors with Guide Tools

   • Some models come with alignment jigs or guides

   • Helps maintain perfect tape alignment and pitch

3. Electric or Semi-Automatic Splice Cutters

   • Used in higher volume or automated environments

   • Ensure repeatability and reduce manual error

Benefits

• Ensures accurate and clean cuts

• Helps maintain component tape alignment

• Reduces feeder errors during splicing

• Improves overall line efficiency and reduces downtime

Buying Tips

• Choose a pair that matches your tape type: paper or embossed plastic

• Make sure it's suitable for your tape width (8mm, 12mm, etc.)

• If using splicing jigs or alignment fixtures, ensure compatibility

• Look for models with replaceable blades for long-term use
