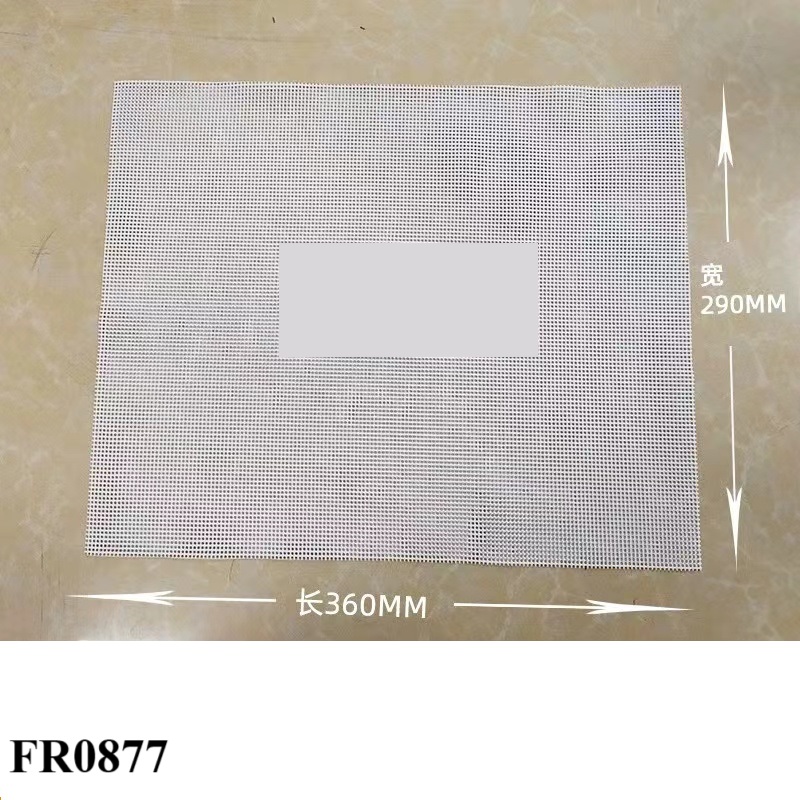

FR0877 ESD Tray For PCB

ESD Tray for PCB

An ESD Tray for PCB is a specially designed anti-static tray used for the safe handling, storage, and transport of printed circuit boards (PCBs) that are sensitive to electrostatic discharge. These trays are essential in electronics manufacturing environments where PCB assemblies must be protected from static damage throughout the production and logistics process.

Key Features

• Electrostatic Protection: Made from conductive or static-dissipative materials that prevent the build-up and discharge of static electricity.

• Precision Fit: Designed with compartments or grooves to securely hold PCBs in place, preventing mechanical damage and short circuits.

• Stackable Design: Allows for efficient storage and transport of multiple PCBs while maintaining ESD safety.

• Durable Construction: Resistant to chemicals, heat, and physical impact, ensuring long-lasting performance in industrial environments.

• Optional Lids: Available with ESD-safe covers to protect PCBs from dust and physical damage during transit.

Specifications (Typical)

• Material: Conductive polypropylene / ABS / PS

• Surface Resistivity: 10³–10⁶ ohms/sq (conductive) or 10⁶–10⁹ ohms/sq (dissipative)

• Tray Dimensions: Customizable based on PCB size and application

• Temperature Resistance: Up to 100–120°C (varies by material)

Applications

• PCB assembly and testing lines

• SMT production environments

• Safe transport between manufacturing stations

• ESD-compliant storage solutions
